Non-Standard Carbide Drill Bits,Customized Drilling Tools For Hole
Machining
Application Field:
Non-standard Carbide Drill Bits are mainly used for hole machining , suitable for drilling all
kinds of material,such as aluminum,non-ferrous
metals,non-metallic,and other harden steel etc.
We DROW specialize Drill Bits for tens of years. There are 6 types of drill bits: twist drill,
flat drill, deep hole drill, reaming drill, countersink drill,
center drill.With our strong R&D power and advanced equipment ,
we can always offer you professional and reasonable solutions to
meet all kinds of non-standard customization as well as lower your cost.
Recommended Parameters for Tungsten Carbide Drill Cutting
Blade Diameter
D | Cutting material
(Hardness) | Linear velocity Vc m/min | feed F
mm/min | vSingle edge
cutting quantity
mm/rpm | speed S
rpm/min |
| D<4.0 | >HRC58° | Vc=20m/min | 40-60 | 0.005-0.010 | S=Vc*1000/D/3.14 |
| ≥HRC50° | Vc=20m/min | 50-70 | 0.008-0.012 |
| ≥HRC35 | Vc=30m/min | 100-150 | 0.010-0.015 |
| Stainless steel | Vc=30m/min | 100-150 | 0.010-0.015 |
| Aluminum alloy | Vc=35-65m/min | 150-300 | 0.025-0.050 |
| non-metallic | Vc=40-80m/min | 150-300 | 0.025-0.050 |
| D>4.0 | >HRC58° | Vc=30m/min | 60-100 | 0.025-0.040 |
| >HRC50° | Vc=35m/min | 80-140 | 0.030-0.050 |
| >HRC35° | Vc=50m/min | 150-300 | 0.040-0.080 |
| Stainless steel | Vc=40m/min | 100-250 | 0.035-0.080 |
| Aluminum alloy | Vc=100-150m/min | 400-800 | 0.050-0.100 |
| non-metallic | Vc=150-200m/min | 550-800 | 0.125-0.180 |
Product Details--- Non-Standard Carbide Drill Bits
- Tool Material : 100% virgin tungsten carbide.
- Usage: Drilling.Deep hole machining.
- Accuracy: ±0.005mm
- Applicable materials: Uncoated tools for aluminum,non-ferrous
metals.non-metallic.Coated tools for carbon steel,alloy steel,mold
steel,other steel,ductile iron etc.
- Shank type:Milling shank, Universal Milling Shank.
- Customization:Non-standard.Please attach CAD drawings/3D drawings
for your inquiry, thank you.
Summary product information as below:
| Brand Name: | Drow |
| Model Number: | Non-Standard Carbide Drill Bits |
| Customized support: | OEM, ODM. |
| Standard: | Non-standard |
| Product type: | Solid Carbide Drill Bits |
| Material: | Tungsten Carbide,100% new Material |
| Coating: | To be defined per your different demands and application |
| Hardness: | HRA 91~93.5 |
| Precision: | ±0.005mm |
| Surface Finish: | High Temp/Hardness AlTiN, Bright(Uncoated) |
| Shank type | Milling shank, Universal Milling Shank |
| Usage: | Deep hole machining |
| Applicable materials(Uncoated tools): | aluminum,non-ferrous metals.non-metallic |
| Applicable materials(Coated tools): | carbon steel,alloy steel,mold steel,other steel,ductile iron |
| Compatible Machine | CNC lathes, centering machines, cutter arranging machine skateboard
lathes, turret lathes and other longitudinal lathes |
Product Features:
1.Special groove design:High-speed feed,high precision,suitable for difficult machining
conditions such as lathe machining that is easy to block.
2.Hole wall high finish: Grinded with new fine particle tungsten steel bar smooth and
sharp,not easy to stick to the knife,with high wear resistance and
strength.
3.Chamfering design:The shank chamfering design makes it easier to install the chunk.
4.Unique edge treatment:Using nano technology and advanced grinding technology, the cutting
edge of the drills sharper than before,with less cutting force,
reducing the probability of breaking the drill and improving the
quality of the hole wall.
Product Specification:
Non-standard.Please attach CAD drawings/3D drawings for your
inquiry, thank you.
Why choose us:
1.Technical innovation: complex surfaces and functional structures
can be quickly formed and kept accurate.
2.Processing speed: short production cycle, fast delivery time, to
ensure delivery on time according to the delivery date.
3.Product quality: high quality guaranteed,high precision, up to
0.002-0.001mm.
4.Confidentiality system: triple confidentiality measures to
protect, proofing more assured.
5.Fully equipped: excellent processing capacity, multiple
production lines, advanced equipment, professional supporting
facilities.
6.Cost-effective: reasonable design and material selection lead us
to a competitive price, so that could help provide you more
favorable price of the same level products .

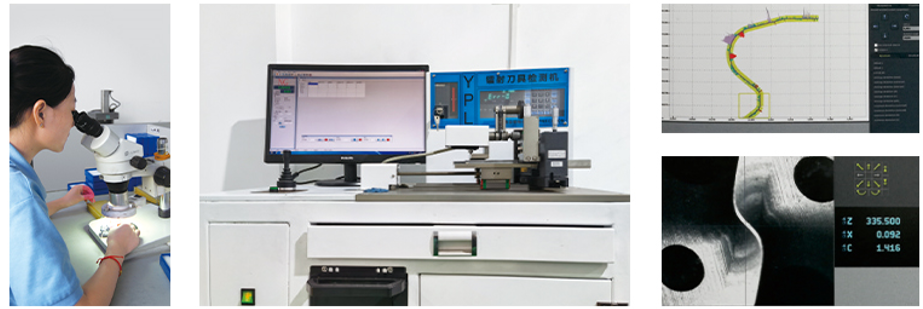

Quality Inspection:
1.Product testing:Automatic tactile measurement of crankshaft cutter with inner
cutting edge. No matter how the alignment is, the measurement
system can measure the run out and concentricity and can be
implemented automatically
2.Tool analysis system:The software can scan the forming tool and automatically compare
the nominal value. Automatically produce test reports and record
and prove them as representative documents
FAQ
Q1:Do you produce special cutting tools?
A: Yes,we specialize in customized cutter fabricate and translate
the most complex cutting idea into reality, tools manufactured by
us are designed and customized for various demanding applications
and variety materials!
Q2:Do you accept low volume for sample order? And what’s your MOQ
for special tools?
A: Yes, we do. For sample order, MOQ one piece is accepted, and the
sample lead time is 2-3 days. It can be negotiated for special
requirement.
Q3:If we want to cooperate with you, is it possible to get
confidentiality?
A: Sure, all your information including company info, drawings, PO
details will be kept confidential, we can signed NDA if you want
(non disclosure agreement).
Q4: What is your terms of payment?
A: T/T 30% as deposit, and 70% balance before delivery. We'll show
you the photos of the products and packages before you pay the
balance.
Q5: what can you buy from us?
A: Carbide insert,carbide end mill,carbide drill,carbide
boring,cutting tools&customized carbide precision molds.
Q6: Who are we?
A:We are based in Guangdong Province, China, start from 2010,sell
to Western Europe(10.00%),North America(20.00%),Eastern
Europe(20.00%),Southeast Asia(40.00%),Africa(10.00%). There are
total about 51-100 people in our factory.
Q7: How do you keep long-term and good relationship with our business?
A:1. Consistent quality and competitive price to ensure our
customers benefit ;
2. We respect every customer as our friend. We sincerely do
business and make friends with them, no matter where they come
from.
Q8:Are you a factory or trading company?
A1: We are a professional manufacturer of precision hardware tools
industry for tens of years. Welcome to visit our company.We
guarantee our products are factory price, very cheap and
competitive.
