SIM Stable Boring Tool Holders Locking Precision with Internal Coolant Design
Drow_Carbide_Boring_Tools_MD_EN.pdf
Application Field:
Reliable tool holder,tool bar for inner hole boring tools with
internal water coolant design to improve tool lifespan. Besides,The
locking pin design of the tool handle realizes efficient and
repeated clamping, greatly reducing labor time costs.
We can always meet your special demands due to our outstanding
R&D team and standardizing factory production. Welcome to
contact us!
Product Details---SIM Locking Precision Holder
- Material :Steel.
- Usage:Tool holder of boring tools,mini lathe. Compatible for CNC
lathes, centering machines, cutter arranging machine skateboard
lathes, turret lathes and other longitudinal lathes.
- Color: Black coating.
- Small-end Diameter:4.0~7.0mm.
- Weight of item:0.20kg/pcs
- Internal coolant design: Central outlet water internal coolant
design to improve tool lifespan.
Specific product information as below:
| Brand Name: | Drow |
| Model Number: | SIM boring tool-holders |
| Customized support: | OEM, ODM |
| Product type: | Locking precision Toolholders |
| Material: | Steel |
| Color: | Black coating |
| Small-end Diameter | 4.0mm-7.0mm |
| Weight of item: | 0.20kg/pcs |
| Characteristic: | Internal coolant design |
| Usage: | Tool holder of boring tools,
internal Turning Tool, CNC Machining |
| Compatible machine: | CNC lathes, centering machines, cutter arranging machine skateboard
lathes, turret lathes and other longitudinal lathes |
| Mainly suitable for machine tool brands | Swiss TORNOS lathe, Citizen, Nomura, Tsugami,Star,Miyano,etc |
| Machining type | Boring and Turning |
| Customization | Professional and Available |
Product Features:

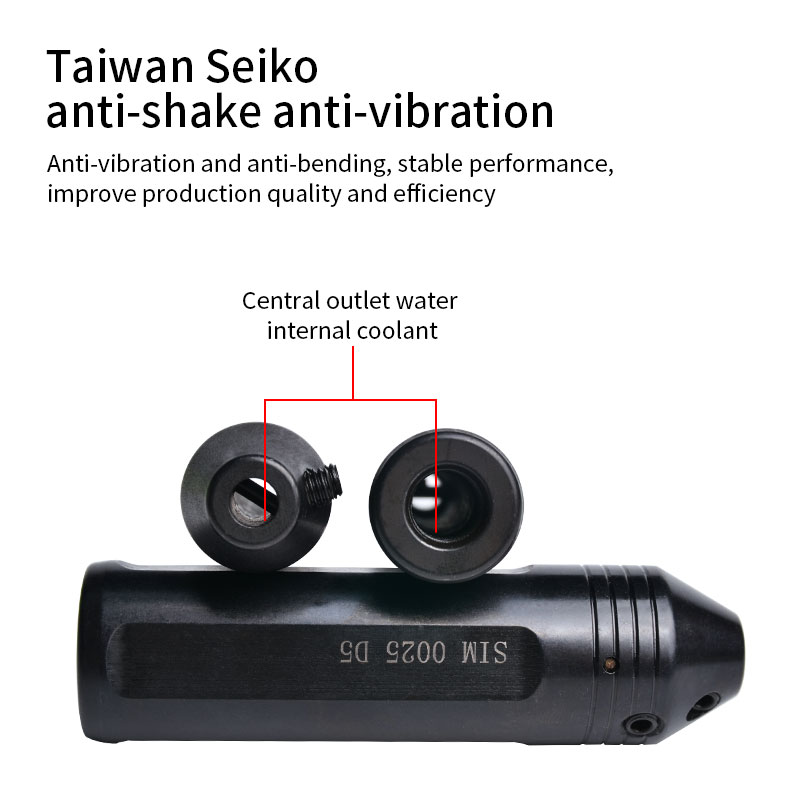

1.Taiwan Seiko, anti-shake and anti-vibration
2.Anti-seismic and anti-bending, stable performance, improve
production quality and efficiency.
3.Central outlet water internal coolant
4.Precision ground high-quality tool steel, high temperature
quenching, good toughnes
5. The locking pin design of the tool handle realizes efficient and
repeated clamping, greatly reducing labor time costs
Why choose us:
1. Innovation in production technology: Complex surfaces and
functional structures can be formed quickly and remain accurate.
2.Processing speed: short production cycle, fast delivery time,
ensure delivery on time.
3. Strict quality control of work keeps quality consistent.
4.Confidentiality system: triple confidentiality measures to
protect, proofing more assured.
5. Complete equipment: good processing capacity, more production
lines, advanced equipment, complete supporting facilities.
6. Competitive price: Reasonable design and material selection
guide us to a competitive price, which can offer you a better
price.
Product Specification
| Model | D | D1 | L | h | Clamping Screw |
| SIM0012-D4 | 12 | 4.0 | 75 | 11 | T0507 |
| SIM0012-D5 | 12 | 5.0 | 75 | 11 | T0507 |
| SIM0012-D6 | 12 | 6.0 | 75 | 11 | T0507 |
| SIM0016-D4 | 16 | 4.0 | 75 | 14 | _T0507 |
| SIM0016-D5 | 16 | 5.0 | 75 | 14 | T0507 |
| SIM0016-D6 | 16 | 6.0 | 75 | 14 | T0507 |
| SIM0016-D7 | 16 | 7.0 | 75 | 14 | T0507 |
| SIM0020-D4 | 20 | 4.0 | 90 | 18 | T0507 |
| SIM0020-D5 | 20 | 5.0 | 90 | 18 | T0507 |
| SIM0020-D6 | 20 | 6.0 | 90 | 18 | T0507 |
| SIM0020-D7 | 20 | 7.0 | 90 | 18 | T0507 |
| SIM0022-D4 | 22 | 4.0 | 90 | 20 | T0507 |
| SIM0O22-D5 | 22 | 5.0 | 90 | 20 | T0507 |
| SIM0022-D6 | 22 | 6.0 | 90 | 20 | T0507 |
| SIM0022-D7 | 22 | 70 | 90 | 20 | T0507 |
| SM0025-D4 | 25 | 4.0 | 90 | 23 | T0507 |
| SIM0025-D5 | 25 | 5.0 | 90 | 23 | T0507 |
| SIM0025-D6 | 25 | 6.0 | 90 | 23 | T0507 |
| SIM0025-D7 | 25 | 7.0 | 90 | 23 | T0507 |
| SIM1000-D4 | 25,4 | 4.0 | 90 | 23.4 | T0507 |
| SIM1000-D5 | 25.4 | 5.0 | 90 | 23.4 | T0507 |
| SIM1000-D6 | 25.4 | 6.0 | 90 | 23.4 | T0507 |
| SIM1000-D7 | 25.4 | 7.0 | 90 | 23.4 | T0507 |
| Model | D | D1 | L | L1 | L2 | dp Water hole pipe | Clamping Screw |
| SIM22S-D4 | 22 | 4.0 | 52 | 30 | 25 | 6.0 | T0507 |
| SIM22S-D5 | 22 | 5.0 | 52 | 30 | 25 | 6.0 | T0507 |
| SIM22S-D6 | 22 | 6.0 | 52 | 30 | 25 | 6.0 | T0507 |
| SIM22S-D7 | 22 | 7.0 | 52 | 30 | 25 | 6.0 | T0507 |
Product Show
Rigorous Quality Inspection
1.Projector detection
2.ZOLLER detection
3.Swis edging
4.German forging difference process detection
5.Edge passivation detection
6.Coreless grinding
